Cable Tags

Colorful tags for antenna cables to quickly identify their lengths.
Made for RG8X Cable. I printed these in Yellow so they stand out and I can always identify my cables.
Note: Use the Layer Filament change option on the final 0.4mm height to change filament colors and highlight the text.

Parts List:

QuantityDescription
23D Printed Parts
43mm x 8mm Self Taping Screws

Links:

OpenSCAD Source File
3D Print STL File for Tops
3D Print STL File for Bottoms

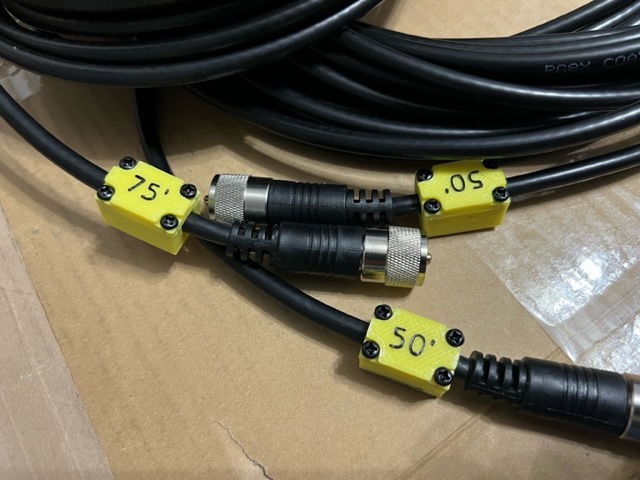

Finished Product

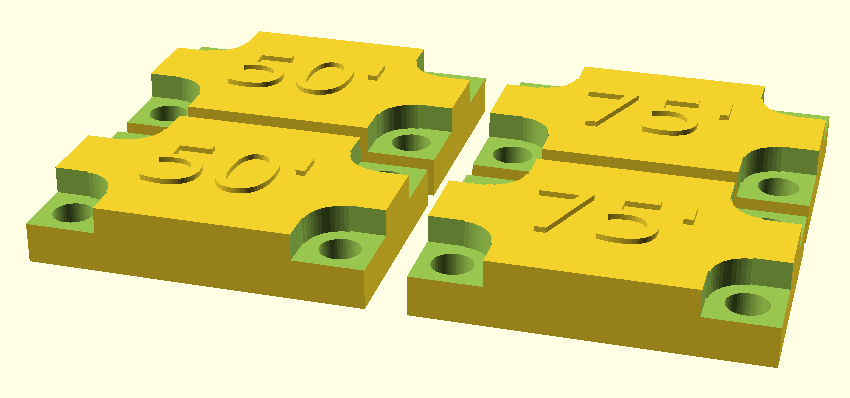

OpenSCAD View of Tops

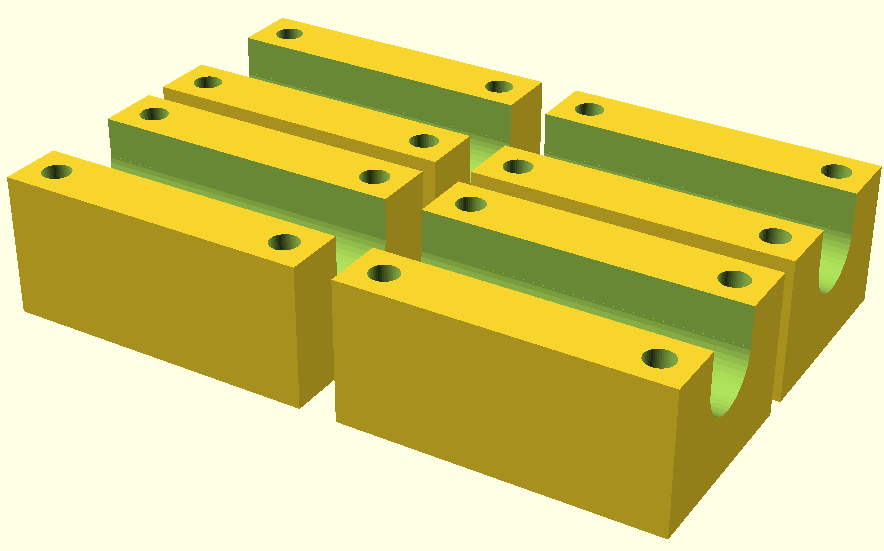

OpenSCAD View of Bottoms
