Yaesu FH-2 Replacement

Similar function to the Yaesu FH-2 without the extra programming buttons.
Some Yeasu radios allow you to record voice and CW memories (up to 5).
This box makes quick access to playing those memories rather than going through the radio menus to access them.
The Top of my models have labels for the 5 most common functions I've recorded. You will want to customize these for your own use.
All are printed with PETG filament. For the Top plate I sliced with and defined a filament layer change on the final 0.4mm top portion.
This allows me to change the filament color and highlight the text.
For proper button spacing, solder the switches centered starting at the top row and skipping 3 rows between each switch.
The sleeve was created to help mount the Top with screws showing and to mount the PCB.

Parts List:

QuantityDescription
53D Printed Buttons
13D Printed Top
13D Printed Sleeve
13D Printed Box
103mm x 10mm Self Taping Screws (Sleeve & Side Mounts)
42mm x 4mm Self Paing Screws (PCB Mount)
5Micro Momentary Contact Push Button Switch
1Panel Mount RCA Female Socket
12x8 Prototyping PCBs Circuit Board
?Misc. Resistors
13.5mm RCA Male to 1/8 inch Mono Male Audio Cable

Links:

Good Tutorial on the Resisttor Values
OpenSCAD Source for this Project
3D STL File for Top Cover
3D STL File for a Single Button
3D STL File for Sleeve
3D STL File for Box

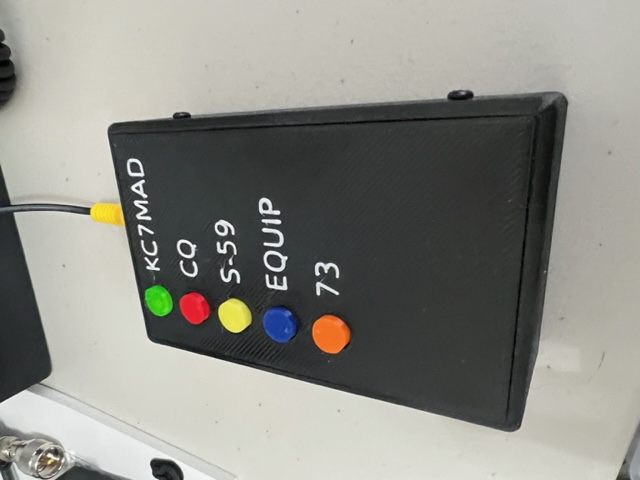

Finished Project

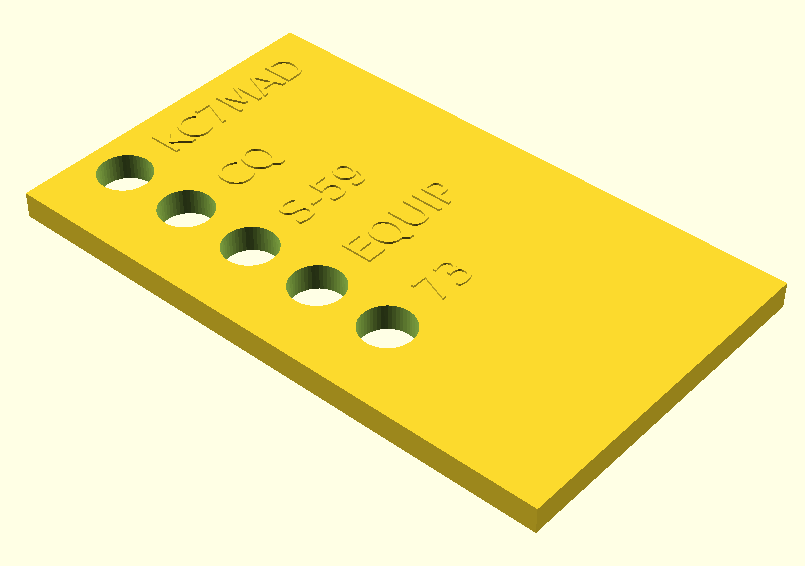

OpenSCAD View of Top


OpenSCAD View of Button

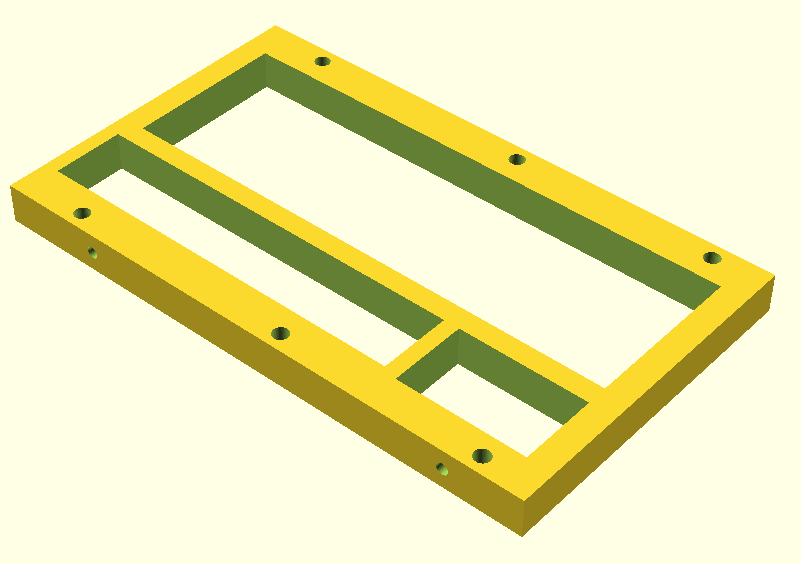

OpenSCAD View of Sleeve

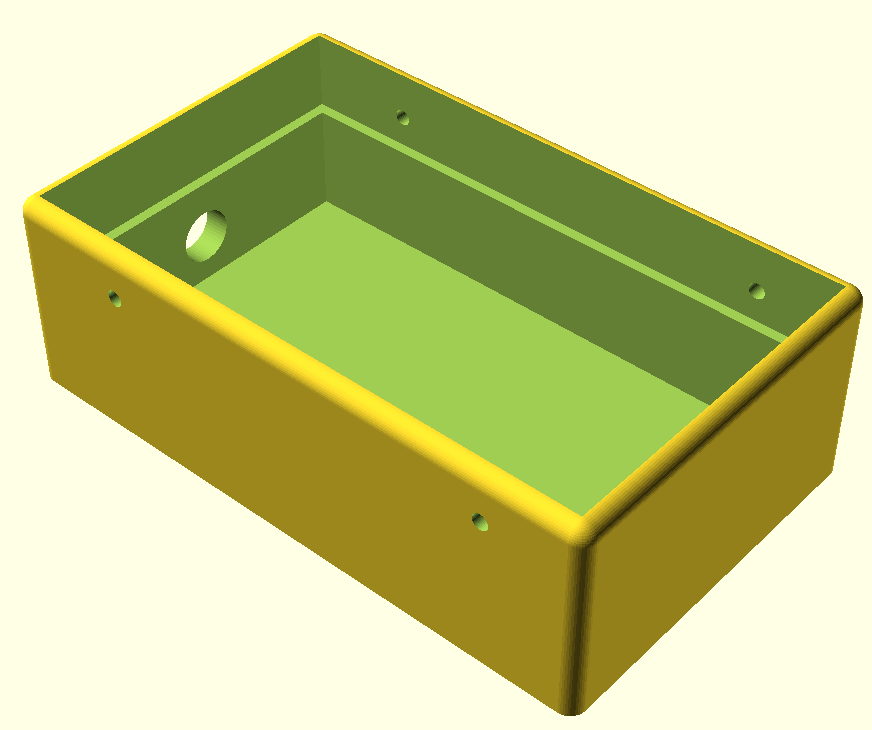

OpenSCAD View of Box
