Anderson Voltmeter Battery Topper

Battery mount Anderson Powerpole distribution terminals with voltmeter.

Parts List:

QuantityDescription
23D Printed Pieces
43mm x 10mm Self-taping Screws
23mm x 5mm Self-taping Screws
1Anderson Powerpole 8 Position Distribution Block
1Mini DC Voltmeter
1Mini Rocker Switch
1Terminal Eyelet to Anderson Custom Made Cable

Links:

OpenSCAD Source File
3D Print STL File

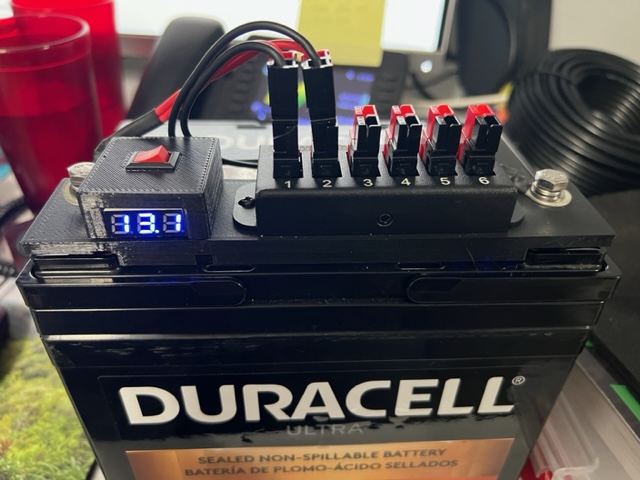

Finished Project

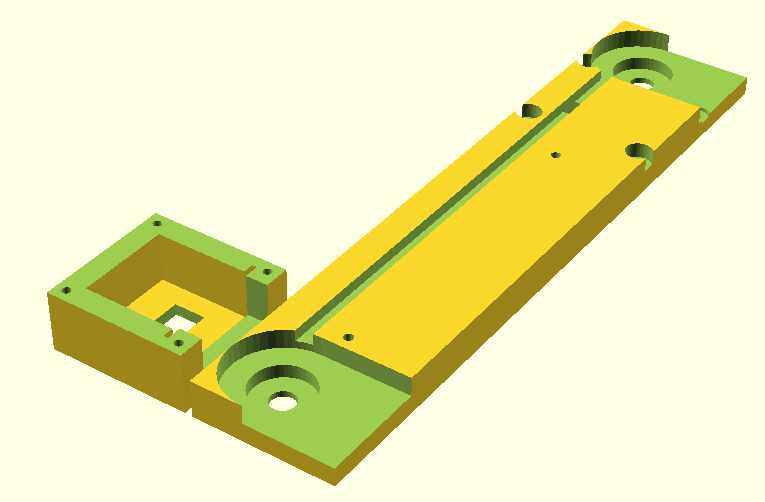

OpenSCAD Assembled Drawing

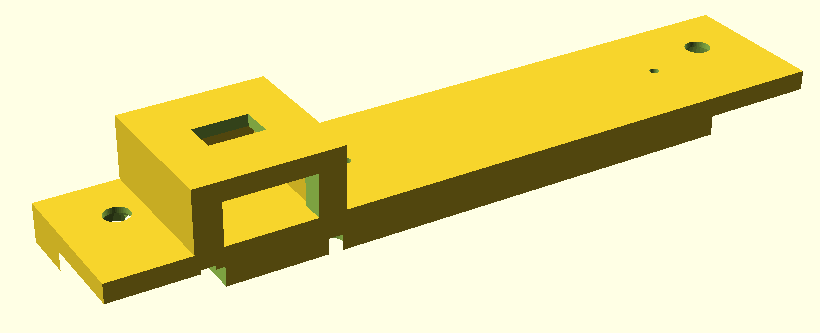

OpenSCAD 3D Print Formatted Parts
